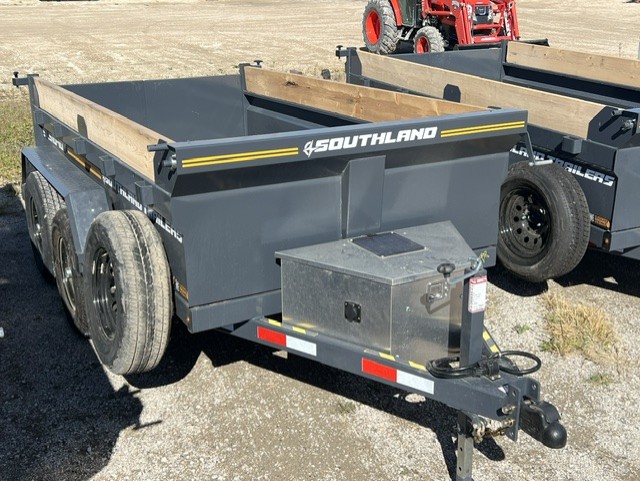

Factory Model SL510-10K CHARCOAL
Built Like a Dump Truck, Not a Light Utility Trailer
When concrete, rock, or equipment hits the floor, the force looks for weak spots. Traditional side-to-side crossmembers can flex at their welds and let the floor ripple between supports. Southland uses full-length sills to create a stronger, cleaner load path under the bed.
Direct load path
Weight travels through long steel channels into the main frame.
Flat floor support
Continuous support…
Factory Model SL510-10K CHARCOAL
Built Like a Dump Truck, Not a Light Utility Trailer
When concrete, rock, or equipment hits the floor, the force looks for weak spots. Traditional side-to-side crossmembers can flex at their welds and let the floor ripple between supports. Southland uses full-length sills to create a stronger, cleaner load path under the bed.
Direct load path
Weight travels through long steel channels into the main frame.
Flat floor support
Continuous support helps prevent washboarding and low spots in the bed.
Better hoist base
The scissor hoist mounts into a stronger support system instead of one small point.
Axle (2) 5,200 lb. Lippert Spring
Hoist Champion CS412T 5 Ton
Jack 7,000 lb, Bolted, Top wind, Pull Pin Drop Leg
Ramp (2) 2,500 lb. Midspan Ramps (47 lbs. each)
Wheels 225/75R15 D Steel
Tailgate Steel Barn Door
Coupler 21,000 lb. Demco Adjustable
Floor & Wall 12ga Floor / 14ga Wall
Frame 4 X 2 HSS
Lights LED
Electric Plug Cold Weather 7 Wire RV
Safety Chains 16,200 lb 5/16”
Paint Specs PPG 2-Part Epoxy DTM
Dump Angle 45°
Rating Set Standard
Length (ft) 10
Net Weight (lb) 2239
GVWR (lb) 11400
Payload Capacity (lb) 9201
Dimension Box Length 121 1/2”
Dimension Box Height 21 3/4”
Dimension Overall Length 173”
Standard Features
• Stake Pockets
• HSS Structural Tubing
• Scissor Hoist – Power Up / Power Down
• Adjustable Coupler
• Aluminum Toolbox
• 110V Battery Charger
• 10W Solar Panel
• PPG DTM 2 Part Epoxy Paint
• Fully Enclosed Wiring Specifications
• Engineered Sill Design
• Spare Tire*
• Galvanized Steel Slide in Ramps*
• Roll Up Tarp*
• Rear Drop Down Stabilizer Jacks*
• Side Boards*
