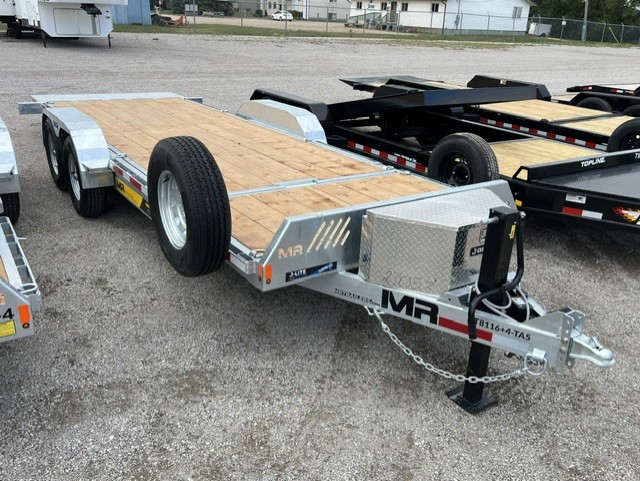

2027 Maxi-Roule 7 X 16+4 Galvanized Tilt Bed Equipment Trailer 14K
2027
CALL FOR PRICE
Year:
2027
Manufacturer:
Maxi-Roule
Model:
7 X 16+4
Axle Capacity:
7000lbs
VIN:
2MXUU8BZ5VD116357
Floor Length:
20'
Width:
81" Between Fenders
Weight:
3392
GVWR:
14000
Payload Capacity:
10608
Stock #:
27053
Description
Factory Model TT8116+4-TA5
Factory Ordered With Mounted Spare Tire
The Maxi-Roule TT 81x16+4 (14K) is a commercial-grade, galvanized steel gravity-tilt equipment trailer featuring an 81-inch (approx. 7-foot) usable deck width, a 16-foot tilting deck, and a 4-foot stationary front section. Manufactured in Canada by Maxi-Roule, this heavy-duty configuration eliminates the need for traditional ramps. It allows users to smoothly drive equipment onto the tilting section while maintaining a stable, flat space at the front for…
Factory Model TT8116+4-TA5
Factory Ordered With Mounted Spare Tire
The Maxi-Roule TT 81×16+4 (14K) is a commercial-grade, galvanized steel gravity-tilt equipment trailer featuring an 81-inch (approx. 7-foot) usable deck width, a 16-foot tilting deck, and a 4-foot stationary front section. Manufactured in Canada by Maxi-Roule, this heavy-duty configuration eliminates the need for traditional ramps. It allows users to smoothly drive equipment onto the tilting section while maintaining a stable, flat space at the front for tools, attachments, or secondary cargo.
Key Specifications & Features
Frame & Finish: Built using heavy-duty structural steel with a hot-dipped galvanized finish providing superior protection against rust and harsh winter road salts.
Deck Dimensions: 20 feet of total length, split between a 16-foot tilting deck and a 4-foot stationary platform at the front.
Weight Capacity: Typically rated with a 14,000 lb GVWR (Gross Vehicle Weight Rating), utilizing tandem 7,000 lb axles equipped with electric brakes.
Loading Mechanism: Features a gravity-tilt design with a hydraulic cushion cylinder. This slows down the deck’s descent for controlled, safe equipment loading.Premium Accents: Standard configurations feature sealed LED lighting, heavy-duty tie-down points (such as D-rings and stake pockets), a robust tongue jack, and a low load angle designed for tractors, skid steers, and mini-excavators
The Maxi-Roule Tilt Flatbed Trailer 81×20 (16+4) – 14K is a 14,000 lb GVWR equipment hauler featuring a 16-foot tilting deck combined with a 4-foot fixed stationary platform on the front.
Key Specifications
GVWR (Gross Vehicle Weight Rating): 14,000 lb (6,350 kg)Axles: Double axle, dual 7,000 lb capacity
Deck Dimensions: 81 inches wide x 20 feet total length (16 ft tilt + 4 ft fixed front)
Electrical / Connector: 7-way round plug
Brakes: Electric brakes on axles
Tires / Rims: 16-inch radial tires
Jack: Heavy-duty drop-leg jack (typically 12,000 lb capacity on the 14K line)
Standard Build & Features
Frame & Structure: Galvanized or heavy-duty painted steel frame configuration with side rub-rails.
Tilt Mechanism: Hydraulic tilt system with a side-mounted hydraulic regulator/control.
Storage & Tongue: Front tongue-mounted triangle J-box / storage box housing the hydraulic power unit.
Winch Provision: Integrated front winch plate with a cable roller guide option at the base of the tilt deck.
Some pictures and videos are for reference only and may not be of the exact trailer in stock.
